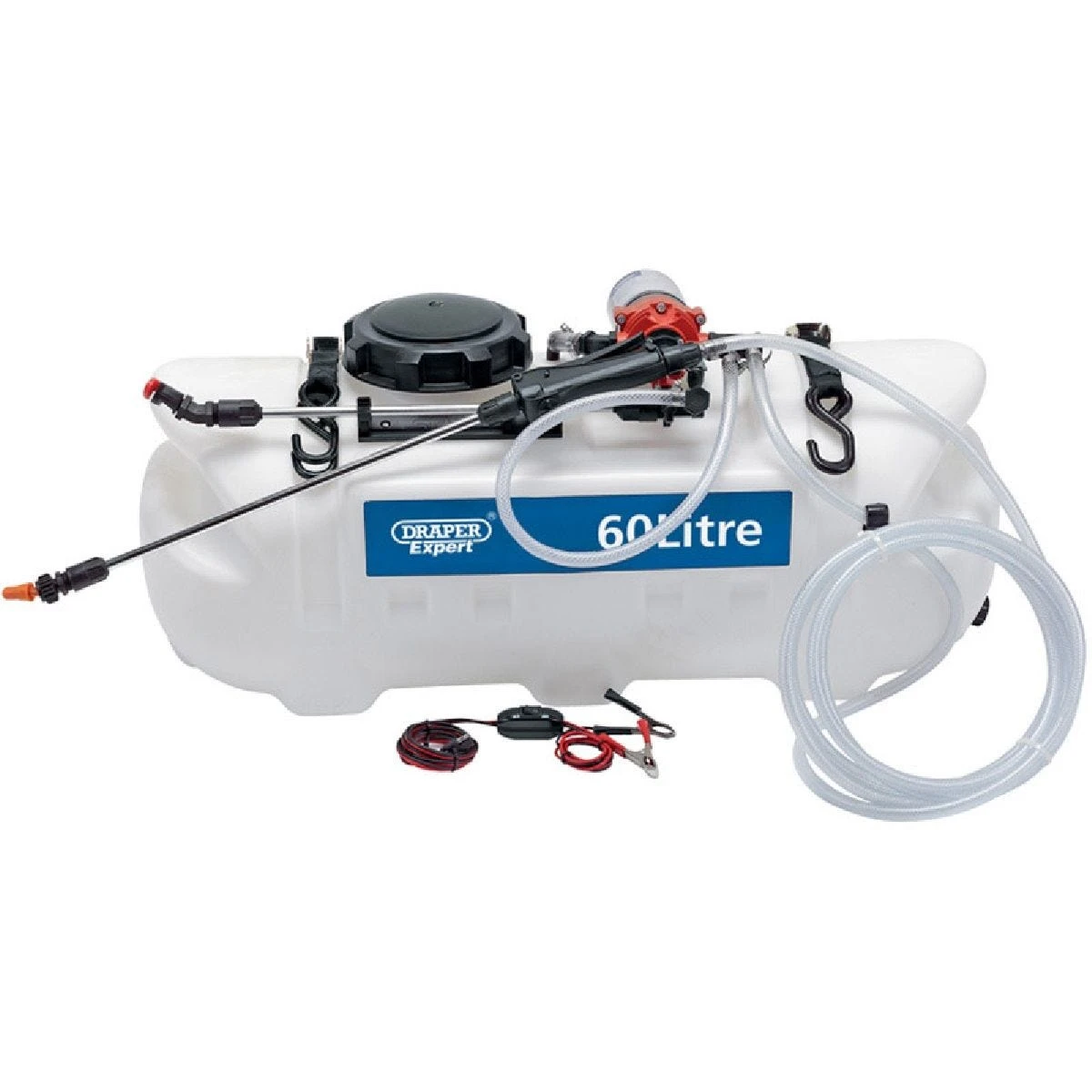

Draper 12V DC ATV Spot/ Broadcast Sprayer – 60L

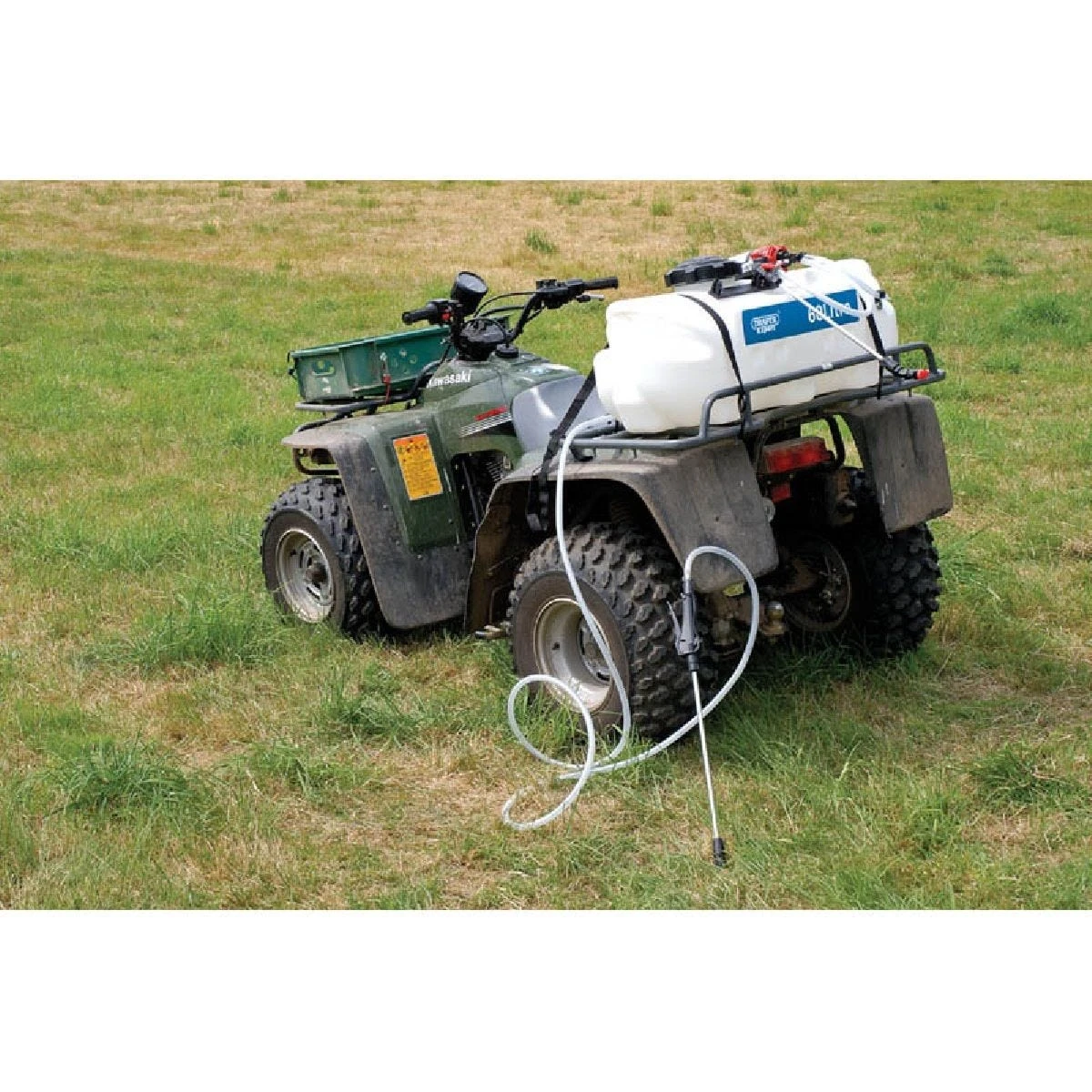

The Draper 12V DC ATV Spot/ Broadcast Sprayer mounts to any all-terrain vehicles (ATV).

Supplied with two lances: one attached to tank bracket for broadcast spraying and the second with a trigger for hand operation.

The Spray pump powered by 12V battery or connected via electric 12V motor on ATV.

The pressure-activated diaphragm pump produces a smooth flow from the tank.

The tank is manufactured from special chemical resistant polymers for extra long life.

Can be used for spraying fertilizer, weed killer, de-icer and ethylene glycol products.

Supplied with straps for fixing to ATV and switch for remote operation.

Specifications

• Maximum flow rate (b/cast lance): 8.3L/min
• Maximum pressure (b/cast lance): 70psi (4.86bar)
• Maximum flow rate (hand lance): 3.8L/min
• Maximum pressure (hand lance): 40psi (2.76bar)
• Spray pattern (both lances): Stream/Cone
• Hose length (hand lance): 4.5m
• Tank dimensions: 864 x 368 x 419mm
• Weight 8.3kg: (empty)
• Colour: White/Black
