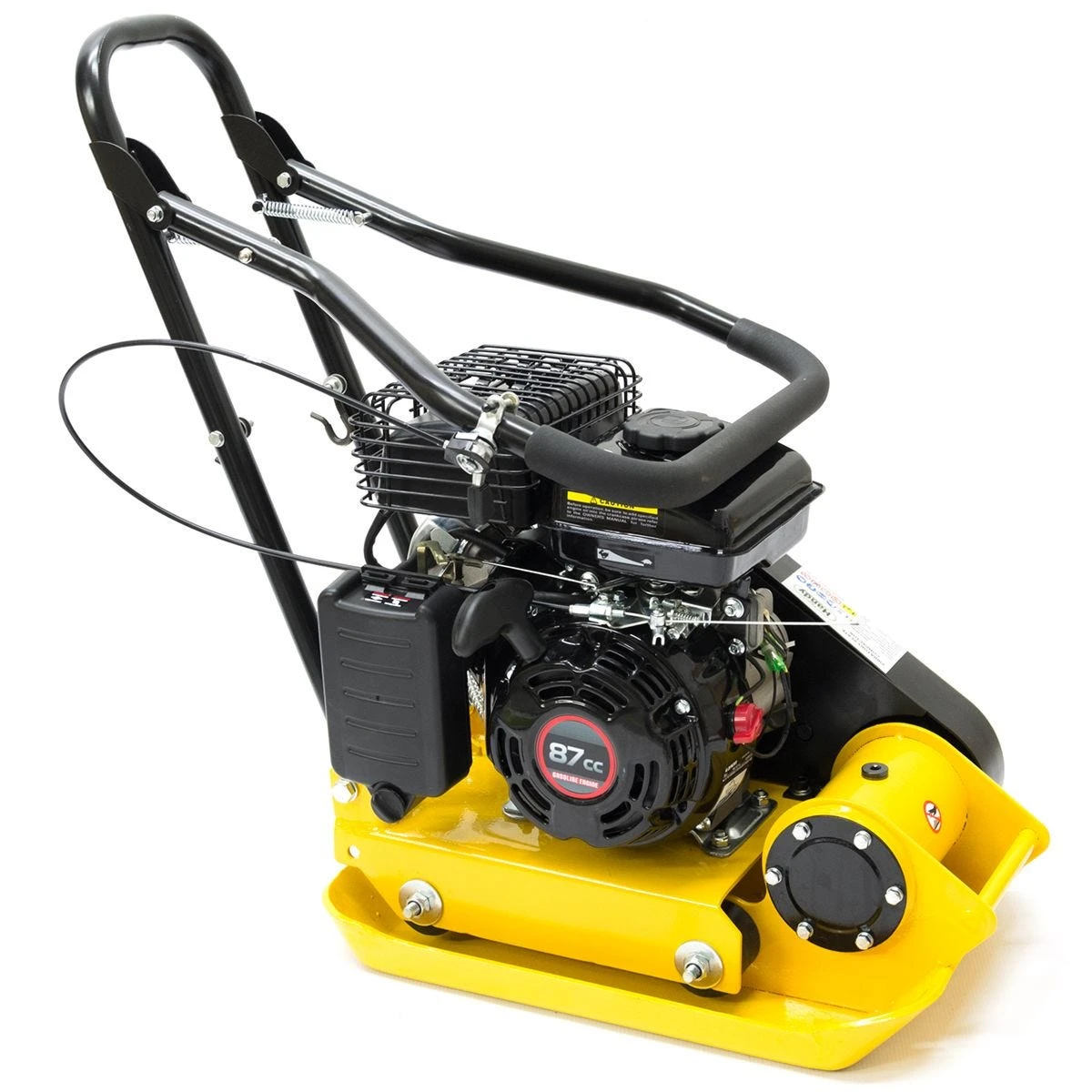

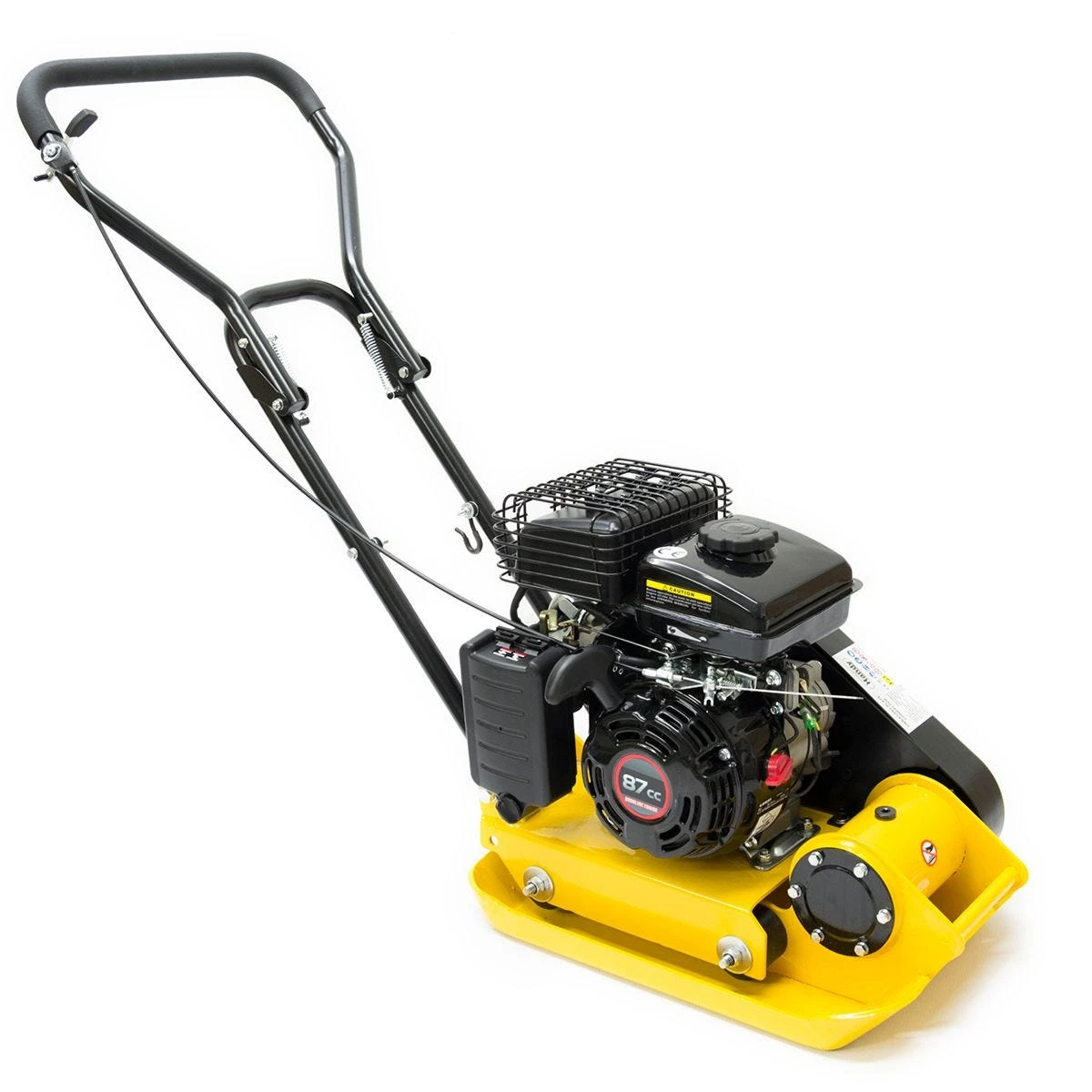

The Handy 30cm (12″) Petrol Compactor Plate

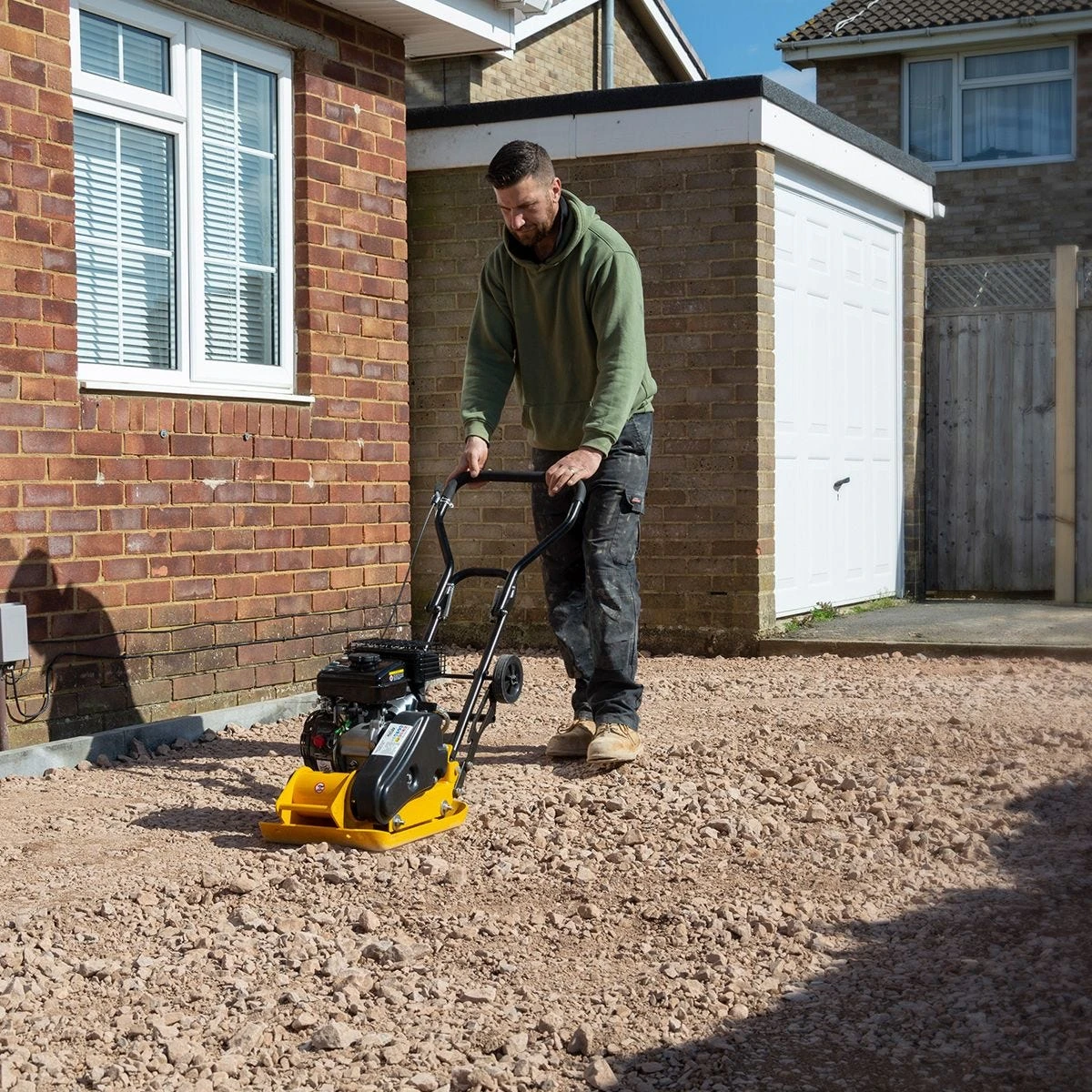

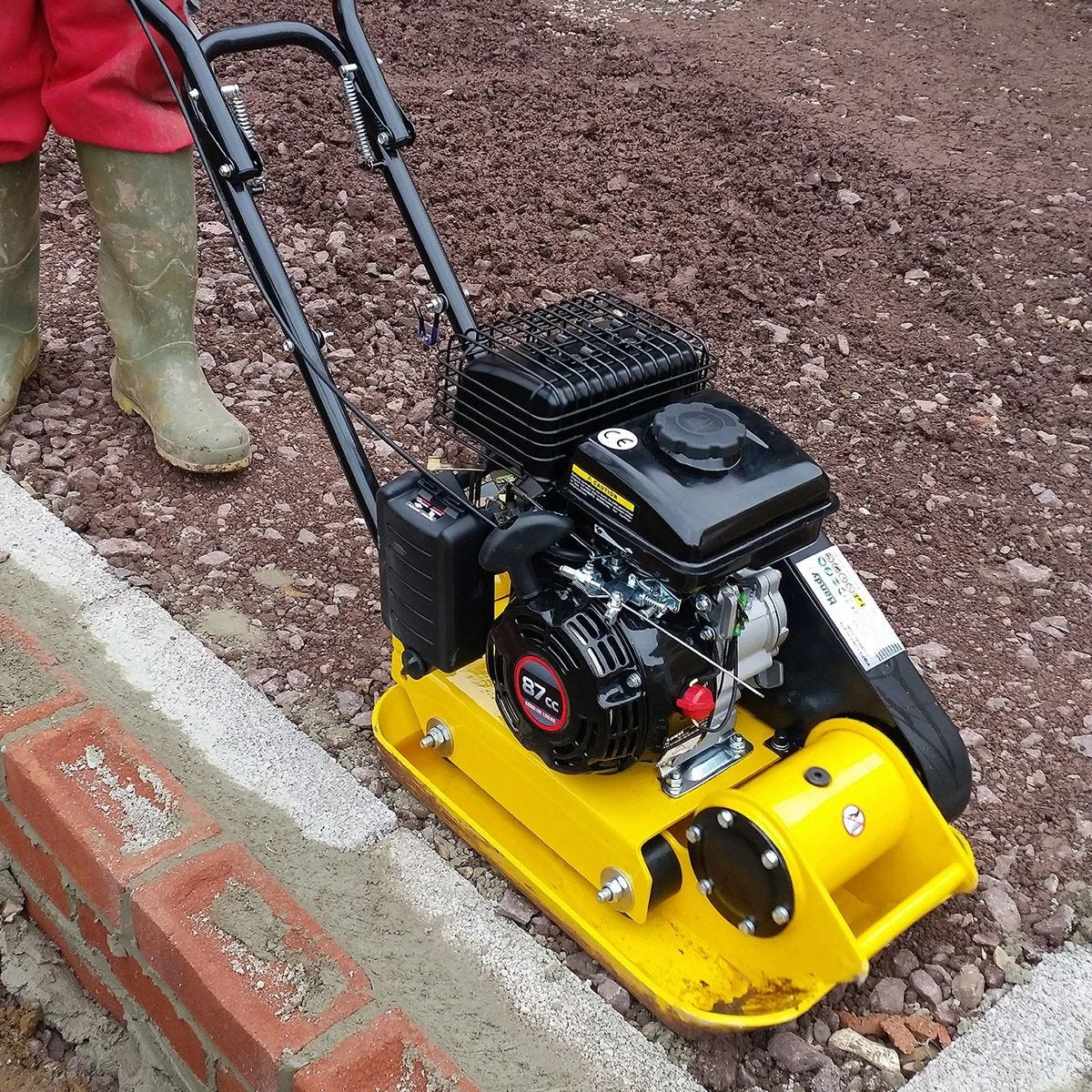

Designed to prepare the ground for patio-laying, extension-building and landscaping, The Handy THLC29140 Petrol Compactor-Plate is a compact and easy-handling machine ideal for both commercial and domestic applications.

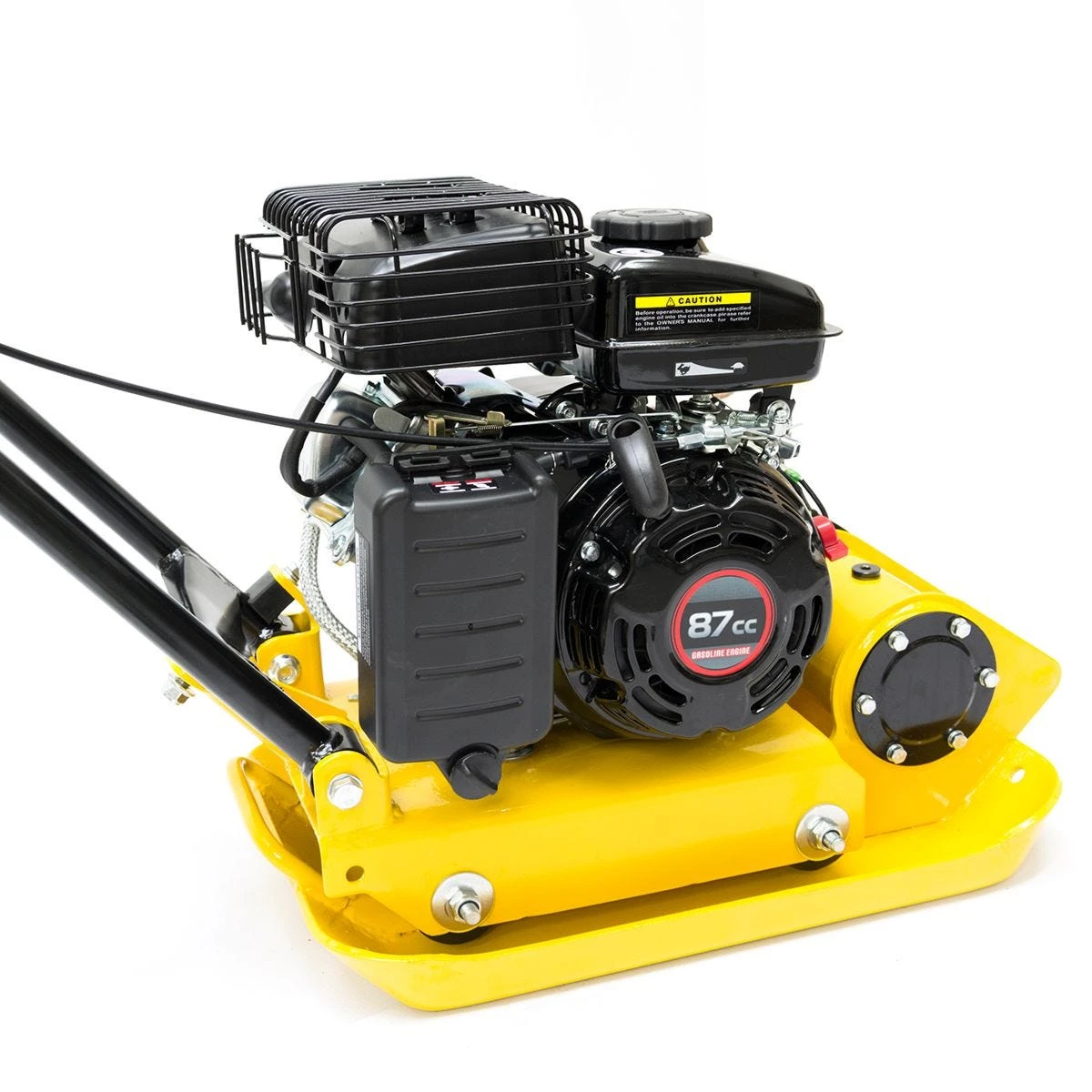

Supplied with a beefy 79cc Loncin OHV engine; a premium-grade four-stroke unit with a cast-iron cylinder-sleeve, metal cam and forged-steel connector for rock-solid long-term reliability; and an OHV configuration for a marked cut in noise, vibration, carbon-emissions and fuel-costs.

A transistor-type ignition works to minimise fuel-consumption on start-up; while a low-oil alert system protects the engine by automatically shutting it down when the reservoir’s running dry.

Another key engine-feature is the roomy 1.6-litre petrol-tank that delivers an extended 1.5-hour run time on a single fill.

The Handy THLC29140 Petrol Compactor-Plate exerts a huge 8200N (861kg) on the ground-surface and operates down to a substantial 20cm.

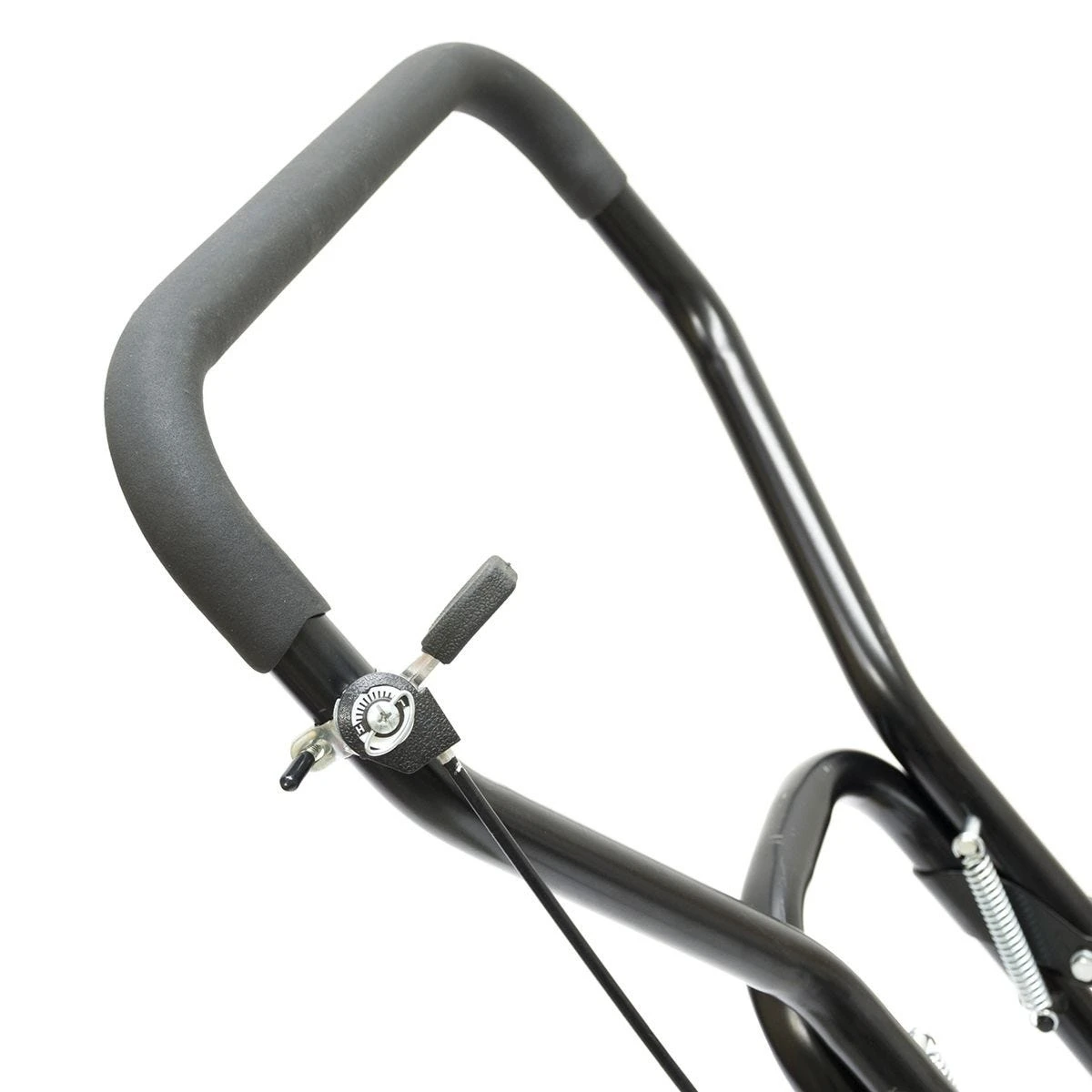

It offers a sizeable 30cm (12in) working-width and moves at 25 metres per minute, so you can expect impressive productivity, and it’s fitted with a comfortable soft-grip handlebar which can be collapsed for convenient transport and storage.

This model can handle inclines up to 20 degrees and can be paired up with an optional wheel-kit for enhanced manoeuvrability.

Specifications

• Engine: Loncin OHV, 79cc,4-stroke Petrol
• Drive: Twin V-Belt via centrifugal clutch
• Centrifugal Force: 8200N
• Plate Size: 495mm x 320mm
• Compaction Force: 861kg
• Compaction Depth: 200mm
• Maximum Gradient: 20 degrees
• Travelling Speed: 25m / min
• Working Width: 30cm (12in)
• Transport Wheels: Available As An Accessory THLC31120 – sold separately
• Weight: (NW) 47.2kg – (GW) 55kg
• Dimensions: D 100 x W 110 x H 83 cm
• Colour: Yellow/Black
