The Handy 35cm (14″) Petrol Compactor Plate

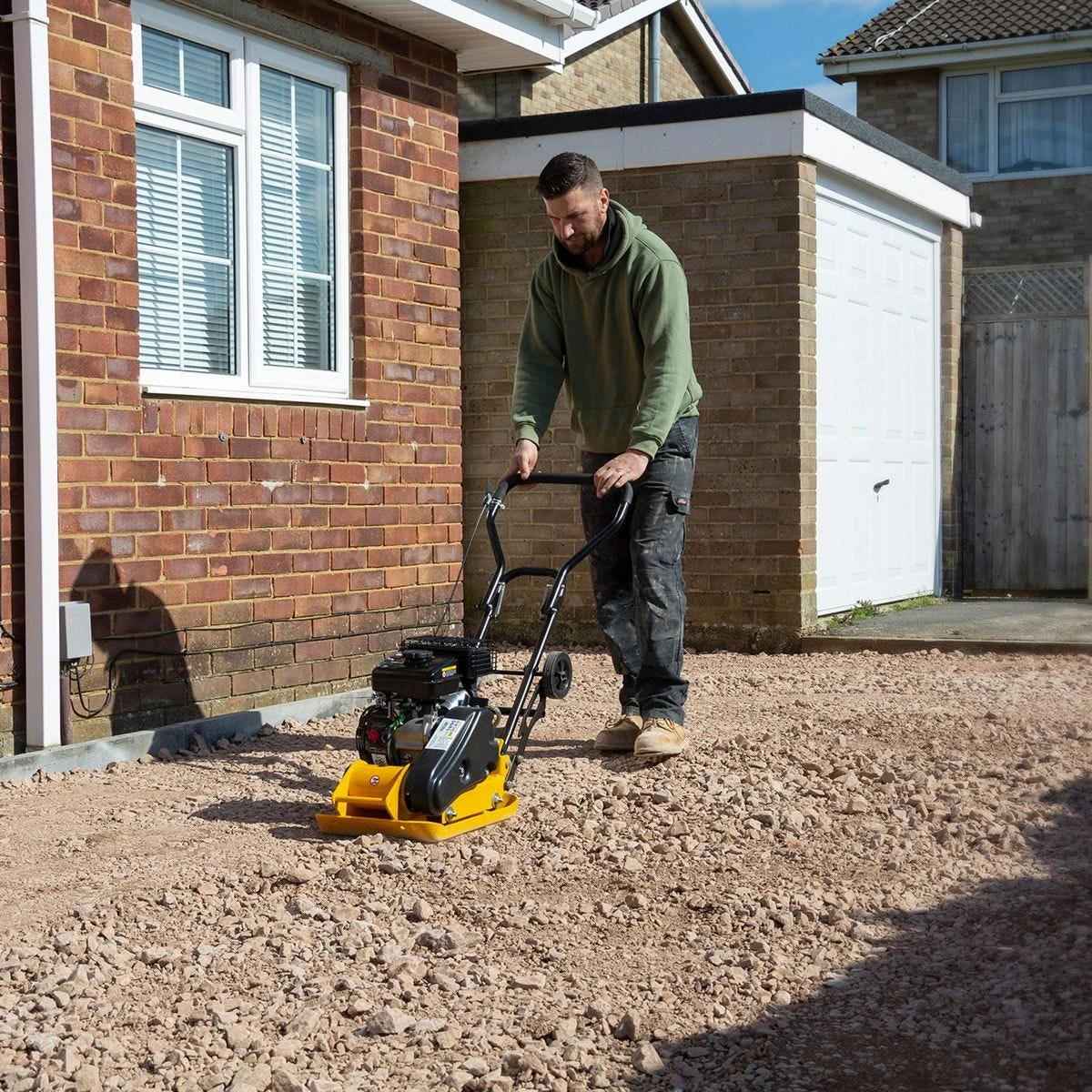

Designed for both domestic and commercial applications, this effective and easy-handling petrol compactor-plate from Handy has been designed to prepare the ground for landscaping, patio-laying and extension-building.

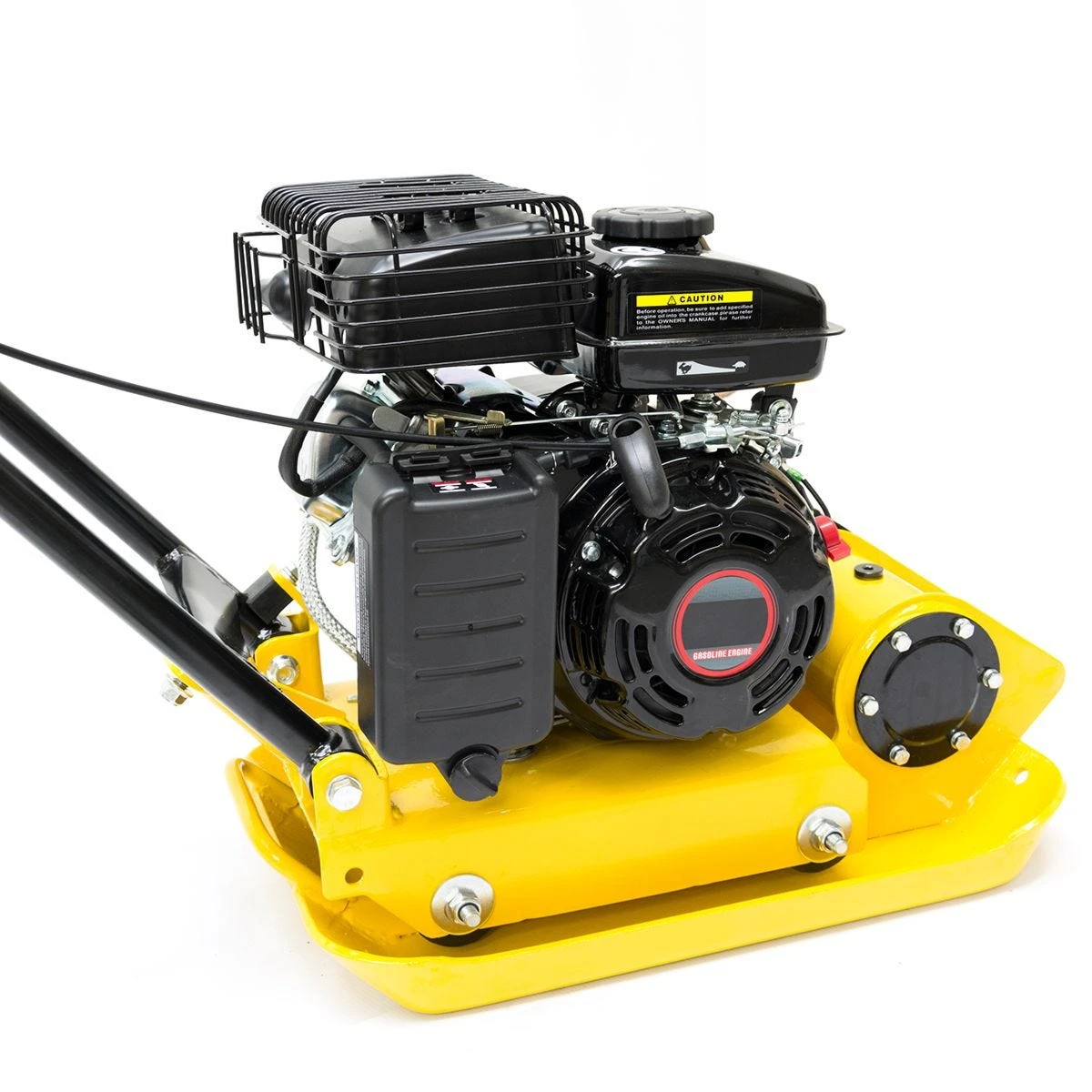

Delivering a high-torque V-belt drive is the Loncin OHV engine; a large-displacement (196cc) four-stroke forced-air-cooled motor with an OHV configuration for a sizeable cut in fuel-consumption, emissions, noise and vibration; and a metal-cam that combines with a cast-iron cylinder-sleeve and a forged-steel connection-rod to confer fantastic long-term reliability.

A low-oil alert system protects the engine by automatically shutting it down when the reservoir’s running dry; while a transistor-type ignition works to minimise fuel-consumption on start-up.

Also important in terms of the engine is the cavernous three-litre fuel-tank that delivers an impressive three-hour run-time on one fill.

The Handy THLC29142 Petrol Compactor-Plate operates down to a substantial 25cm and exerts a massive 11000N (1121kg) on the ground surface.

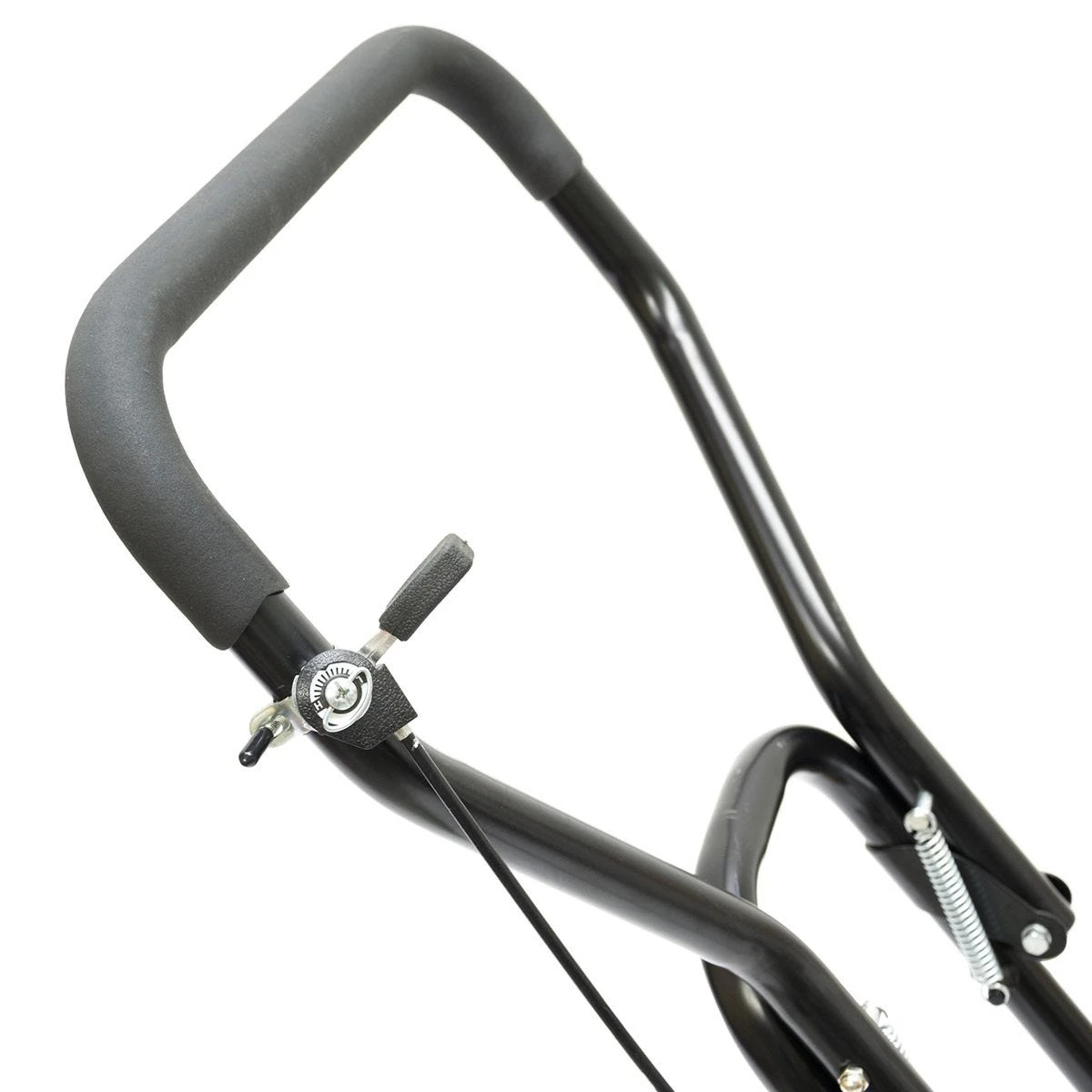

It’s fitted with a comfortable soft-grip handlebar which can be collapsed for convenient transport and storage, and it offers a sizeable 35cm (14in) working-width and moves at 25 metres per minute, so you can expect impressive productivity.

This model can be paired up with an optional wheel-kit for enhanced manoeuvrability and is capable of handling gradients up to 20 degrees.

Specifications

• Engine: Loncin OHV, 196cc, 4-Stroke Petrol
• Drive: Twin V-Belt via centrifugal clutch
• Centrifugal Force: 11000N
• Plate Size: 530mm x 370mm
• Compaction Force: 1121kg
• Compaction Depth: 250mm
• Maximum Gradient: 20 degrees
• Travelling Speed: 25m / min
• Working Width: 35cm (14in)
• Transport Wheels: Available As An Accessory THLC31120 – sold separately
• Weight: (NW) 55.9kg – (GW) 65kg
• Dimensions: D 105 x W 116.5 x H 79 cm
• Colour: Yellow/Black
